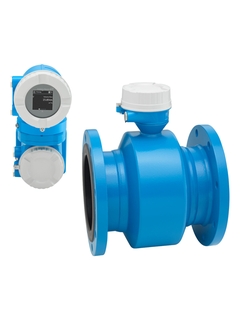

E+H电磁流量计5WBB

Proline Promag W 10

 电磁流量计

各类水和污水标准应用场合的理想选择，操作简单

应用

•双向流量测量，完全不受压力、密度、温度和粘度的影响

•原水取水等基本测量任务的理想选择

仪表特点

•通过国际饮用水认证

•IP68, Type 6P 防护等级

•支持 HART 和 Modbus RS485 系统集成

•安装 app，选配显示单元，操作灵活

优势

•测量可靠：无需直管段，仍保持恒定测量精度，无压损

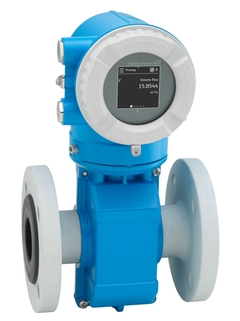

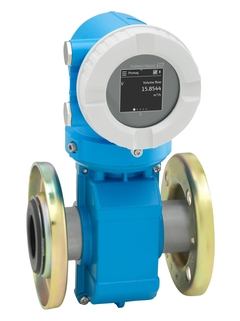

  •灵活工程设计：传感器采用固定法兰或松套法兰连接

•应用广泛：通过 EN ISO 12944 防腐认证，允许埋地安装或

水下测量

•更高工厂可用性：传感器符合行业特定要求

•最优操控性：使用安装 SmartBlue app 的移动设备，或通

过触摸屏显示单元操作

•调试简单高效：引导式仪表组态预设置和现场设置

•带自校验功能：采用 Heartbeat Technology 心跳技术

• 测量原理                           电磁

• 产品标题

• Flowmeter for basic water and wastewater applications with easy-to-use operation concept.

                        Reliable measurement at constant accuracy with 0 x DN inlet run without pressure loss.
                        Suitable for elementary measurement tasks such as raw water intake.

•


• 公称口径范围           DN 25 to 3000(1 to 120")

• 接液部件材质           Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)

                                     Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
                                     Liner material PTFE: –20 to +90 °C (–4 to +160 °F)
                                     Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)

• 测量变量                  Volume flow, conductivity, mass flow

• 最大测量误差            Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

• 测量范围                   0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)

• 最大过程压力            PN 40, Class 300, 20K

• 介质温度范围

  Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
  Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
  Liner material PTFE: –20 to +90 °C (–4 to +194°F)

•


• 环境温度范围

  -40 to 60°C (-40 to 140°F)

•


• 传感器外壳材质

  DN 25 to 300 (1 to 12"): AlSi10Mg, coated
  DN 350 to 2000 (14 to 78"): Carbon steel with protective varnish

•


• 变送器外壳材质

  Polycarbonat; AlSi10Mg, coated

•


• 防护等级

  Compact version: IP66/67, type 4X enclosure
  Sensor remote version (standard): IP66/67, type 4X enclosure
  Sensor remote version (option): IP68, type 6P enclosure, with protective varnish according to EN ISO 12944 C5-M/Im1/Im2/Im3

•


• 显示/操作          LCD display with touch & auto rotate

• 输出                  4-20 mA HART (active/passive), Pulse/frequency/switch output

                               Modbus RS485, 4-20 mA

• 数字通信           HART, MODBUS RS485

• 电源                 DC 24 V

                              AC 100 to 230 V
                              AC 100 to 230 V / DC 24 V (non-hazardous area)

• 防爆认证          CSA, GP, KC

• 计量认证和证书

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

•


• 压力认证和证书  CRN, PED

• 材料证书         3.1 material

• 卫生型认证和证书

  Drinking water approvals: ACS, KTW-BWGL, NSF 61, WRAS BS 6920

该系列产品常备大量现货：

5WBB25-AADAMBJA0AQD32GAA1+AK

5WBB32-AADAEBKA0AQD211AA1+AK

5WBB32-AADAMBJA0AQD32GAA1+AK

5WBB40-AADAMBJA0AQD32GAA1+AK

5WBB50-AADAEBKA0AUD210AA1+AK

5WBB50-AADAEBKA0AQA121AA1+AK

5WBB65-AADAEBKA0AQD211AA1+AK

5WBB80-AADAEBKA0AUD210AA1+AK

5WBB1H-AADAEBKA0AUD210AA1+AK

5WBB1Z-AAEADBKA0AHD3K0AA1+AA

5WBB1F-AADAEBKA0AUD210AA1+AK

5WBB2H-AADADBKA0AUD340AA1+AA
